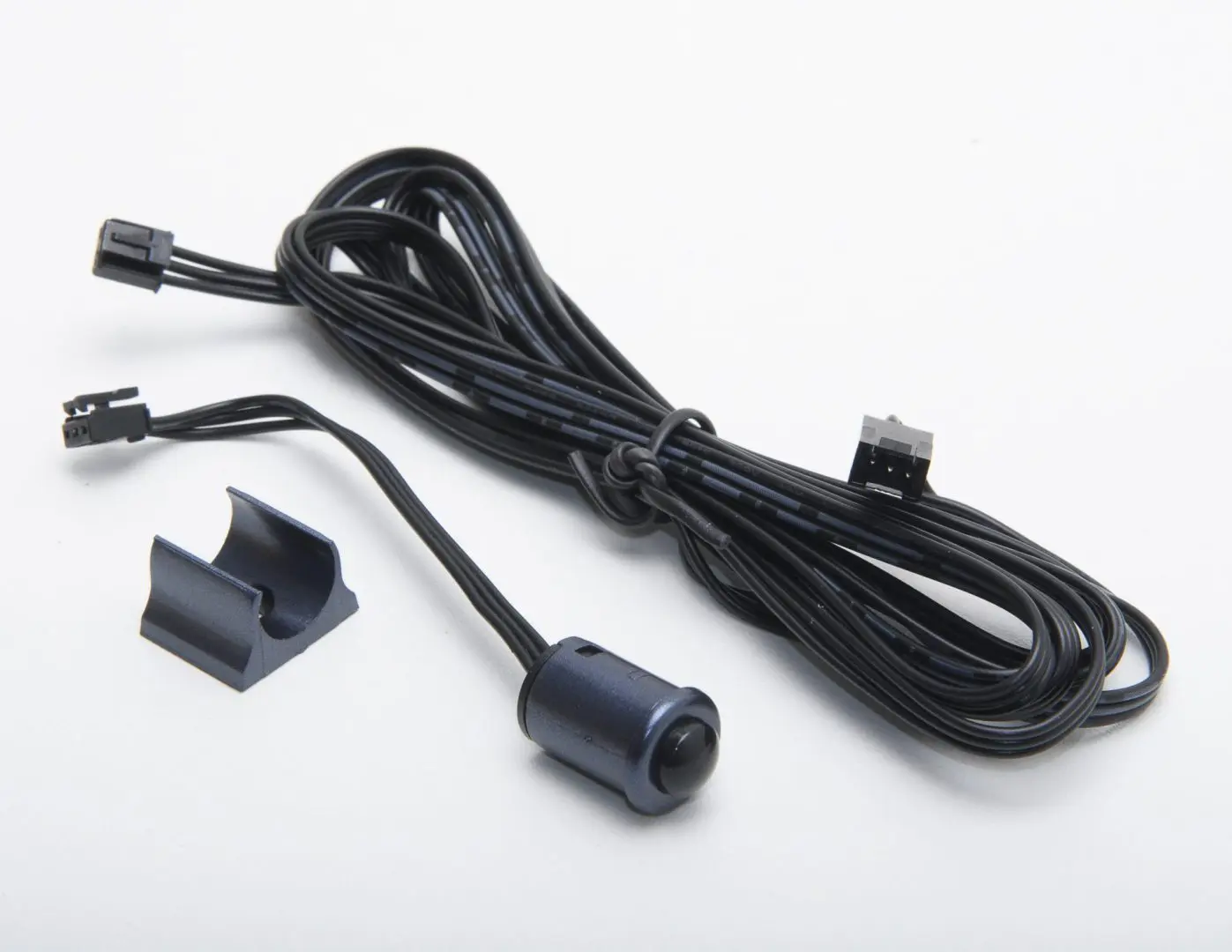

Vroma LED Sensors Plug & Play

  • Plug & Play LED Sensors
  • NO Electrician Needed
  • Compatible with the Vroma Range
Select your size options below: Size guide
x

£15.59 Inc. VAT
£12.99 Exc. VAT

These Plug & Play sensors are compatible with the full Vroma Plug & Play range

  • Touch Sensor- A simple touch will switch the lights on or off
  • Hand Motion Sensor- motion your hand near the sensor to turn on / off, long hold to dim or brighten the lights

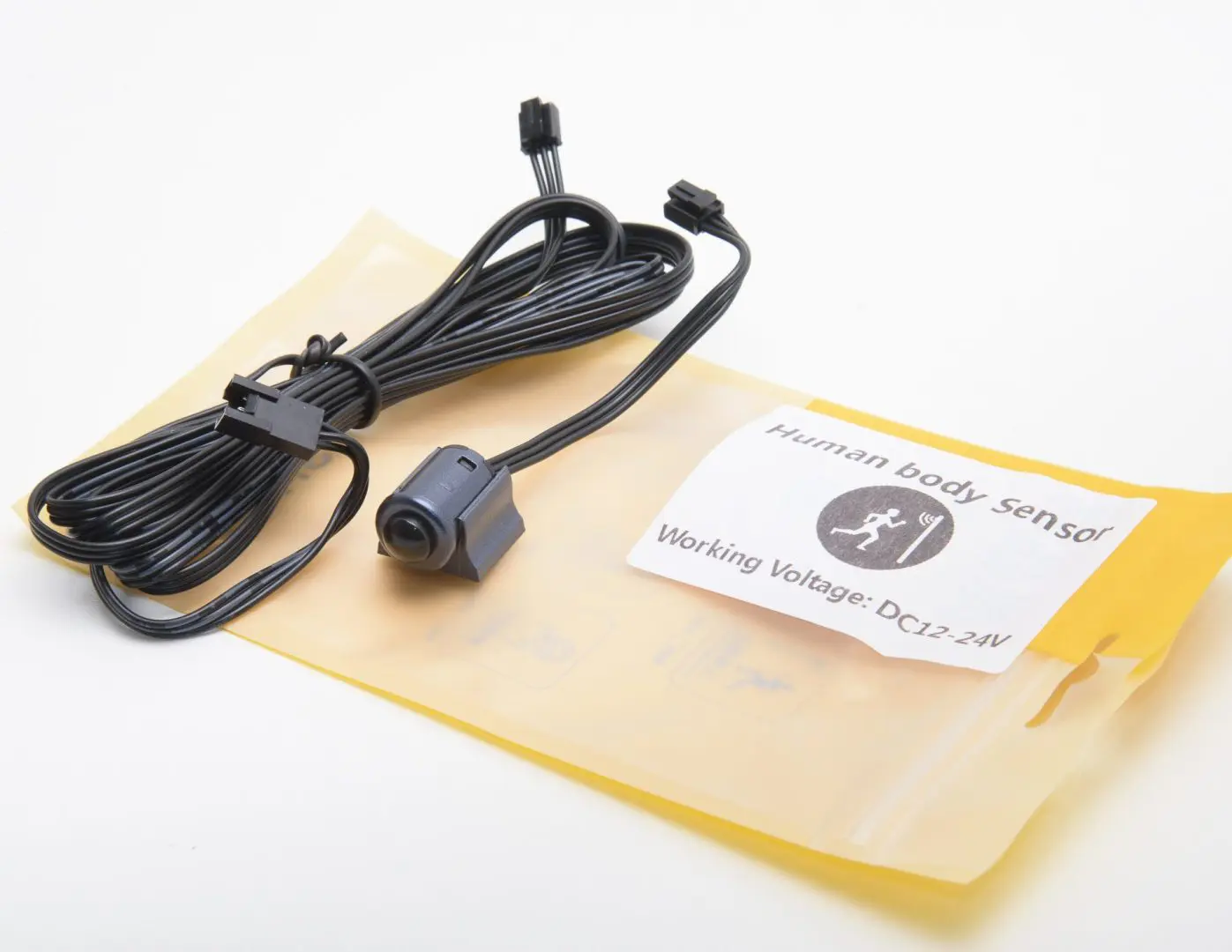

  • Human Body Sensor- this will sensor when approached and will remain on for 1 minute from the last motion.
  • Single Door Sensor- this will light up when the doors are opened and turned off when closed
  • Double Door Sensor- this includes 2 sensors that will trigger when either of 2 doors are opened and will remain on until both are closed.



You are able to use 1 sensor per driver, to have more sensors you will just need to use an additional driver.



Name Sensor Switch
Series No. CYQ1010 CYQ1011 CYQ1012 CYQ1013 CYQ1014
Sensor Type Touch Hand Motion Single Door Human Body Dual Door
Sensor Range 0 Max.5cm Max.5cm Max.5cm Max.5cm
Material  PCB + PC Shell + Copper Wire
Input/Output DC12V-DC24V
Power DC12V Max.60W; DC24V Max.100W
Dimension of
Sensor Head
Φ12mm  *  H16mm
Fixture Dimension 20mm * 17mm * 13mm
Cable Length Input Cable Length:10cm
Extension Cable Length:178cm
Warranty 2 Years
Certificate CE, FCC

Additional information

Type

Touch, Hand Motion, Human Body, Single Door, Double Door
